Source: Florida Courts Technology Commission ()

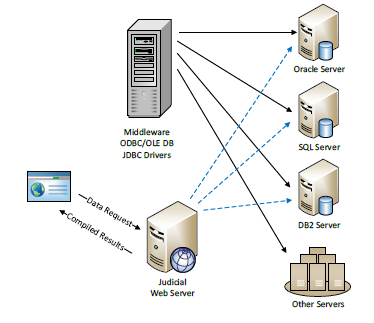

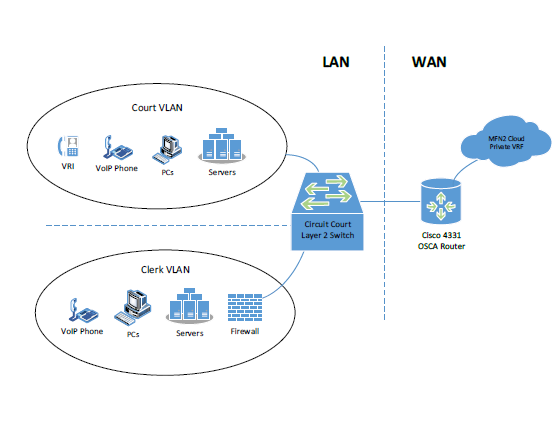

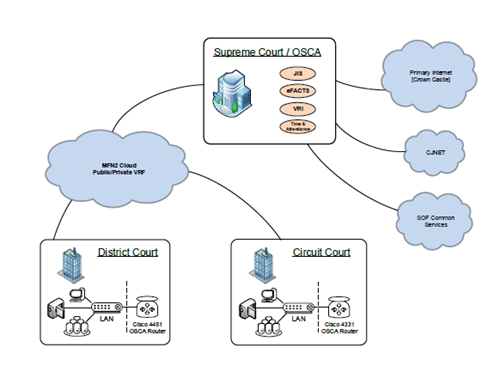

| Details | ||
|---|---|---|
| Hardware | Processor | Quad Core Business Class Intel or AMD (3.4 GHz or greater) |
| Memory (RAM) | 8 GB or greater | |
| Storage | 500 GB Solid State Drive (“SSD”) | |
| Video | DirectX 12 or greater Capable (WDDM Driver Support recommended) | |
| Graphics RAM | 256 MB or greater, the system should be able to accommodate dual displays | |
| Sound | Audio is required in accordance with the planned use of the system | |
| Ports | HDMI and multiple USB 3.0/USB C ports as required | |
| Lifecycle | 3 years | |
| Network Connectivity | Bandwidth | 100/1000BaseT Ethernet, wireless as required |
| Details | ||
|---|---|---|
| Hardware | Processor | Quad Core Business Class Intel or AMD (3 GHz or greater) |
| Memory (RAM) | 8 GB or greater | |
| Storage | 250 GB Solid State Drive (“SSD”) | |
| Graphics | DirectX 12 or greater Capable (WDDM Driver Support recommended) 256 MB (in addition to RAM) | |
| Sound | Audio required | |
| Ports | HDMI or mini-display USB 3.0/USB C ports as required | |
| Lifecycle | 3 years | |
| Bandwidth | Integrated 100/1000 Ethernet LAN (standard) | |
| Network Connectivity | Wireless | Internal adapter supporting 802.11 b/g/n/ac |
| Software | Details |
|---|---|
| Operating System | Windows 10 Professional or higher (OS must be active in the MS Support Lifecycle for patches and updates) |
| Office Suite | G Suite, Office365, or Microsoft Office version currently supported by Microsoft |
| Other Productivity Software | 1) PDF Reader 2) PDF Writer |
| Security Software | 1) Anti-virus 2) Anti-malware |
| Feature Sets | IP Routing, VRRP, HSRP, STP enhancements, 802.1s/w, IGMP snooping, IEEE 802.3af Power over Ethernet (PoE). |
| Security | ACL, port security, MAC address notify, AAA, RADIUS/TACAC+, 802.1x, SSH, SNMPv3, IPv6 |
| Advanced QoS | Layer 2–4 QoS with Class of Service (CoS)/Differentiated Services Code Point (DSCP), & Differentiated Services Model (DiffServ) supporting shaped round robin, strict priority queuing. QoS compliant with DiffServ (IETF) standards as defined in RFC 2474, RFC 2475, RFC 2597 and RFC 2598 and DSCP (IETF) standards as defined in RFC 791, 2597 2598, 2474, 3140 4594[MediaNet]. 802.1p, 802.1Q, 802.11e Resource Reservation protocol (RSVP) in RFC 2205. |
| Management | One IP address and configuration file for the entire stack. Embedded web-based cluster management suite to Layer 2/3/4 services easy configuration of network-wide intelligent services in local or remote locations automatic stack configuration. |
| Performance | Distributed Layer 2 and Layer 3 distributed providing wire-speed switching and routing via Gigabit Ethernet and Fast Ethernet configurations |
| Deployment | Automatic configuration of new units when connected to a stack of switches. Automatic OS version check of new units with the ability to load images from a master location. Auto-MDIX and Web setup for ease of initial deployment. Dynamic trunk configuration across all switch ports. Link Aggregation Control Protocol (LACP) allows the creation of Ethernet channeling with devices that conform to IEEE 802.3ad. IEEE 802.3z-compliant 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, 1000BASE-T and CWDM physical interface support through a field-replaceable small form-factor pluggable (SFP) unit. 10 gigabit Ethernet IEEE 802.3-2008 |
| Configuration/ Survivability | Switches must work standalone and in a stacked configuration. Stack up to 9 units, Separate stacking port. Minimum 32Gbps fault-tolerant bidirectional stack interconnection. Master/slave architecture with 1:N master failover. Less than 1 second Layer 2 failover with nonstop forwarding. Less than 3 second Layer 3 failover with no interrupt forwarding. Cross-stack technology, cross-stack QoS Single network instance (IP, SNMP, CLI, STP, VLAN). Minimum of 24 Ethernet 10/100/1000 ports and 2 SFP uplinks with IEEE 802.3af and pre-standard Power over Ethernet (PoE). |
| Software | Intelligent services: Layer 3 routing support via RIP, OSPF, static IP routing. Dynamic IP unicast routing, smart multicast routing, routed access control lists (ACLs), Hot Standby Router Protocol (HSRP) support, and Virtual Router Redundancy Protocol (VRRP). |
Courtroom technology is provided as a courtesy to the legal profession and court participants. While the court will make every effort to ensure the equipment is working properly, the court does not guarantee the reliability or availability of the equipment. It is presumed that anyone using courtroom technology is properly trained to do so. The court is not responsible to provide educational or technical support for these services. By using this technology, the user agrees to hold the court harmless for any equipment failure or corruption of data, for any court-related proceeding, and to not seek to delay/reschedule court proceedings due to same. Finally, users agree to be prepared to proceed without using technology should the circumstances warrant such action.

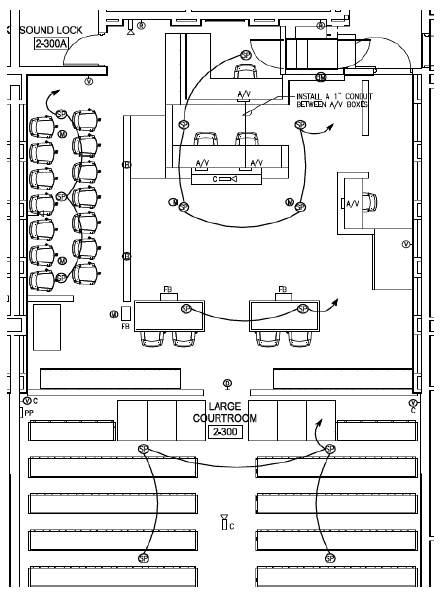

| Press Plate Location. Contractor shall install a 8”x8”x3” Deep Junction Box flush in wall at 18” AFF. Install two 2” conduit from the plate to the Cable tray on the 1st level | |
| Floor Box/Pocket; Install an Ace Backstage 124SL Floor pocket or approved equal. The floor pocket shall be able to contain a minimum of 4 A/V gangs, 1 duplex receptacle, 2 RJ-45 connectors, and two spare single gang plates. Each pocket shall have two 2” conduits for future A/V cabling and one 1” conduit spare. These conduits shall be installed to the cable tray on the 1st level. A separate conduit shall be installed for the duplex receptacle and a separate conduit for the RJ-45 connections. Refer to the telecom and power plans for information on these systems. | |
| Ceiling Speaker Location; location is approximate and shall be coordinated with the A/V contractor prior to roughing in; a junction box shall be installed at each location. Install a ¾” conduit from the speaker to the other speakers on the same zone. The homerun conduit for each zone shall be installed to the cable tray on the 1st level. | |
| Ceiling Hanging Microphone Location; location is approximate and shall be coordinated with the A/V contractor prior to roughing in; a junction box shall be installed at each location. Install a ¾” conduit from the microphone to the cable tray on the 1st level. | |
| Button Microphone Location; location in casework is approximate and shall be coordinated with the A/V contractor prior to roughing in; a stub up ¾” conduit shall be installed in the casework. The conduit shall be routed to the cable tray on the 1st level. | |
| Sidebar Button Microphone Location; location in casework is approximate and shall be coordinated with the A/V contractor prior to roughing in; a stub up ¾” conduit shall be installed in the casework. The conduit shall be routed to the cable tray on the 1st level. | |
| A/V Plate Location; install a 12” wide x 6” tall x 3” deep junction box flush in casework. Junction box shall be located 18” above the bottom of the casework. Install two 2” conduits and one 1” conduit from the junction box to the cable tray on the 1st level. | |
| A/V Camera Location; install a junction box flush in the wall at each location. Install a ¾” conduit from the junction box to the cable tray on the 1st level mounting height shall be coordinated with the A/V contractor prior to install. | |
| A/V Camera Location; install a junction box flush in the wall at each location. Install a ¾” conduit from the junction box to the cable tray on the 1st level mounting height shall be coordinated with the A/V contractor prior to install. | |
| TV Location; install a junction box flush in the wall at each location. Install a ¾” conduit from the junction box to the cable tray on the 1st level mounting height shall be coordinated with the A/V contractor prior to install. | |
| TV Location; install a junction box flush in the wall at each location. Install a ¾” conduit from the junction box to the cable tray on the 1st level mounting height shall be coordinated with the A/V contractor prior to install. | |
| DCR Light Location; install a junction box flush in the wall 12” above the bottom. Install a ¾” conduit from the junction box to the cable tray on the 1st level. | |
| Hearing Impaired IR Location; install a junction box flush in the wall at a height to be determined by the A/V contractor. Install a 1” conduit to the cable tray. |
